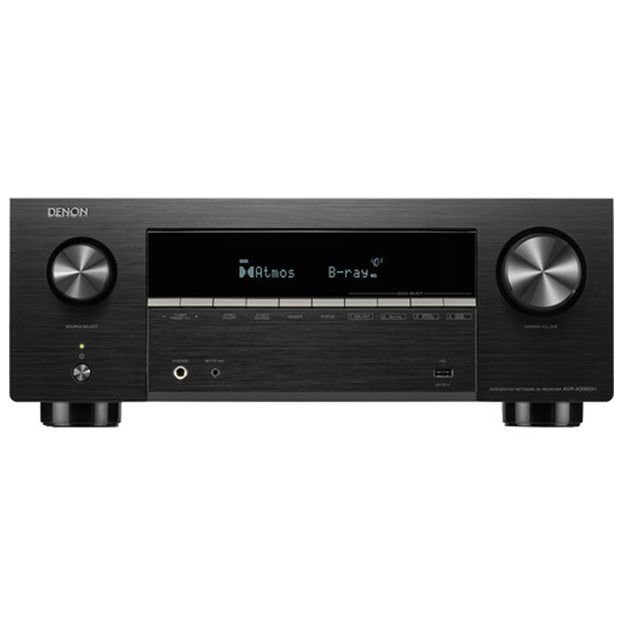

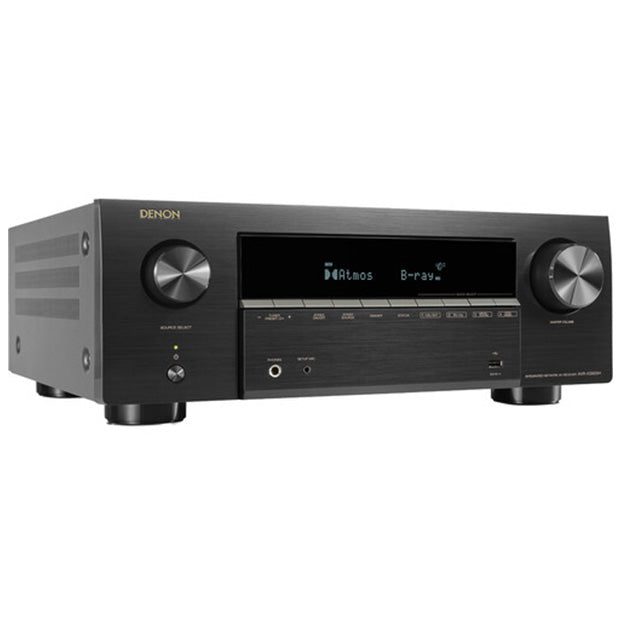

Begin your journey to create an immersive home theater and whole-home audio solution with the Denon AVR-X3900H 9.4-Channel Network A/V Receiver as your centerpiece.
Whether you maximize the 9.4 channels today or expand into them later, the AVR-X3900H is ready with the features you need. It's made to deliver 105W per channel of clean sound and understandable dialogue, along with 360° surround with Dolby Atmos and DTS:X support. Powered by HEOS, you can add compatible speakers to spread audio throughout your home. 4K/8K video passthrough and various gaming features ensure that all of your entertainment sounds and looks its best. All of this can be further calibrated to your own specific space.
Dynamic Surround Sound
The multiple outputs of the AVR-X3900H give you options when it comes to setting up a surround sound speaker system. You can go with 9.4 channels or take advantage of Dolby Atmos and DTS:X technologies and assign some speaker outputs for height-based coverage. Audio is output at 105W per channel for clean dialogue, colorful and detailed music, and dynamic sound effects for movies and games.
Whole-Home Audio
Powered by HEOS and controllable using the mobile HEOS app on your smartphone or tablet, you can use the AVR-X3900H as the centerpiece of a whole-home audio experience. Place compatible speakers in different areas and rooms around your home, using HEOS to stream the same music, podcast, or TV audio to all of them, or different tracks to different zones for a customized experience.
Audyssey Room Calibration
Using the included Audyssey microphone and stand, along with MultiEQ XT, Dynamic EQ, and Dynamic Volume features, the receiver can analyze the acoustic properties of your room and calibrate audio settings to maximize audio quality. The AVR-X3900H also supports the optional upgrade to Dirac Live.
Next-Gen Gaming
With 4K resolution and a 120 Hz refresh rate, the latest gaming consoles are supported with incredibly smooth gameplay. Other features, such as VRR, ALLM, and AMD FreeSync are also provided to keep graphics quality high as the action changes on screen, and controls feeling incredibly responsive.
Additional Details
Built-in upscaling up to 8K
Dolby Vision, HDR10+, and HLG for improved contrast
Stream audio via Bluetooth and Wi-Fi
Spotify support
Auro-3D support
360 Reality Audio using Sony's 360 Spatial Sound
Josh.ai voice control for the AVR and smart home devices
Phono input with ground for connecting a turntable
6 x 8K HDMI inputs
2 x 8K HDMI outputs with one supporting ARC/eARC
1 x 4K HDMI Zone 2 output
Key Specs
Channels
9.4
Object-Based Configuration: 7.4.2
Object-Based Configuration: 5.4.4
Power Output per Channel
2-Channel Driven:
105 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD (RMS)
2-Channel Driven:
135 W at 6 Ohms / 1 kHz / 0.7% THD (RMS)
DTS Compatibility
DTS Neural:X, DTS:X, IMAX Enhanced
Dolby Compatibility
Dolby Atmos
HDR Support
Yes: HDR10+/Dolby Vision/Hybrid Log Gamma
Pass-Through Support
8K
Upscaling
8K UHD
Rear A/V Inputs
6x HDMI
2x Digital Coaxial
2x Optical TOSLINK
1x Stereo RCA (Phono MM) with Ground Screw
5x Stereo RCA
Front I/O
1x 1/4" / 6.35 mm Headphone Output
1x 1/8" / 3.5 mm Setup Mic Input
1x USB-A Input/Output
Wi-Fi
Yes
Bluetooth
Yes
Tuner Type
AM, FM
Amplifier
Channels
9.4
Object-Based Configuration: 7.4.2
Object-Based Configuration: 5.4.4
Power Output per Channel
2-Channel Driven:
105 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD (RMS)
2-Channel Driven:
135 W at 6 Ohms / 1 kHz / 0.7% THD (RMS)
Audio Processing
DTS Compatibility
DTS Neural:X, DTS:X, IMAX Enhanced
Dolby Compatibility
Dolby Atmos
Auro 3D Support
Yes
Video
HDR Support
Yes: HDR10+/Dolby Vision/Hybrid Log Gamma
Pass-Through Support
8K
Upscaling
8K UHD
GUI
Yes

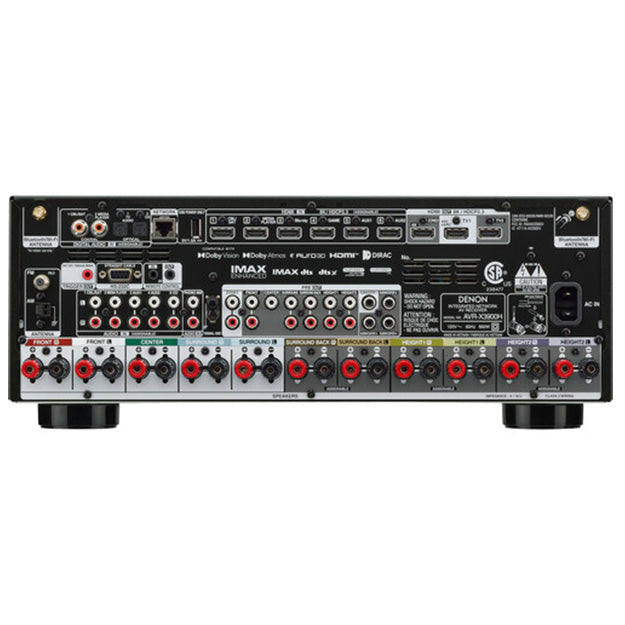

Connectivity
Rear A/V Inputs
6x HDMI
2x Digital Coaxial
2x Optical TOSLINK
1x Stereo RCA (Phono MM) with Ground Screw
5x Stereo RCA
Rear A/V Outputs
2x HDMI
1x HDMI Zone 2
6x Stereo RCA Pre-Out
1x RCA Pre-Out
4x RCA Subwoofer Pre-Out
Front I/O
1x 1/4" / 6.35 mm Headphone Output
1x 1/8" / 3.5 mm Setup Mic Input
1x USB-A Input/Output
Other Rear I/O
1x RJ45 (Ethernet) Input/Output
1x USB-A (Power) Output
2x Bluetooth/Wi-Fi Coaxial F-Type Input/Output
1x 1/8" / 3.5 mm (12 V Trigger) Output
1x DE-9 (RS-232C) Input/Output
1x 1/8" / 3.5 mm (Remote) Input
1x 1/8" / 3.5 mm (Remote) Output
1x AM Block Input
1x FM Coaxial F-Type Input
Speaker I/O
11x Binding Post Pairs (Front, Center, Height, Height 2, Rear)
HDCP Support
Yes: Version 2.3
HDMI Compression Modes
Not Specified by Manufacturer
Audio Return Channel (ARC)
ARC, eARC
HDMI CEC
Yes
Media Card Slot
No
A/B Speaker Selection
Yes
Bi-Amp Capability
Yes
Wireless Connectivity
Wi-Fi
Yes
Bluetooth
Yes
Control
Virtual Assistant
Josh.ai
Mobile App Compatible
Yes: Android & iOS
App Name: HEOS
Tuner Section
Tuner Type
AM, FM
Power
Power Consumption
Active: 660 W
No Sound (ECO On): 60 W
No Sound (ECO Off): 100 W
Standby: 0.1 W
CEC Standby: 0.5 W
Network Standby: 2 W
Physical
Dimensions (W x H x D)
17.1 x 6.6 x 15.3" / 43.4 x 16.8 x 38.9 cm (Antenna Down)
17.1 x 9.3 x 15.3" / 43.4 x 23.6 x 38.9 cm (Antenna Up)
17.1 x 6.6 x 14.9" / 43.4 x 16.8 x 37.8 cm (Antenna Removed)
Weight
27.6 lb / 12.5 kg
Barcode: 747192148058
