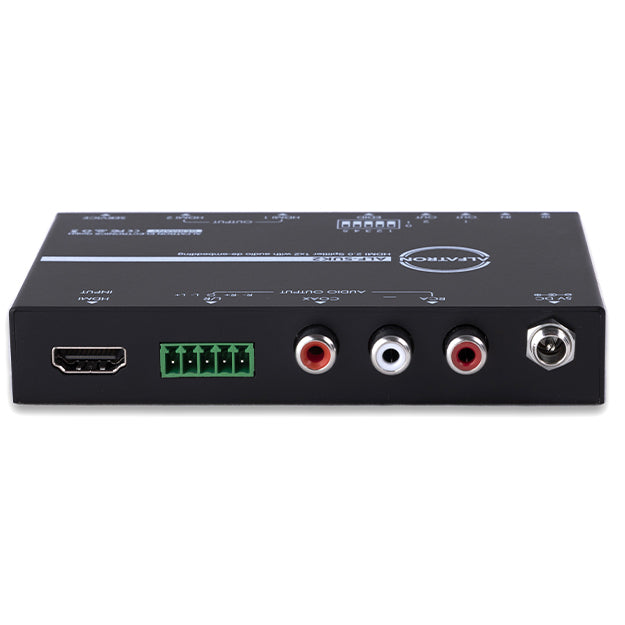

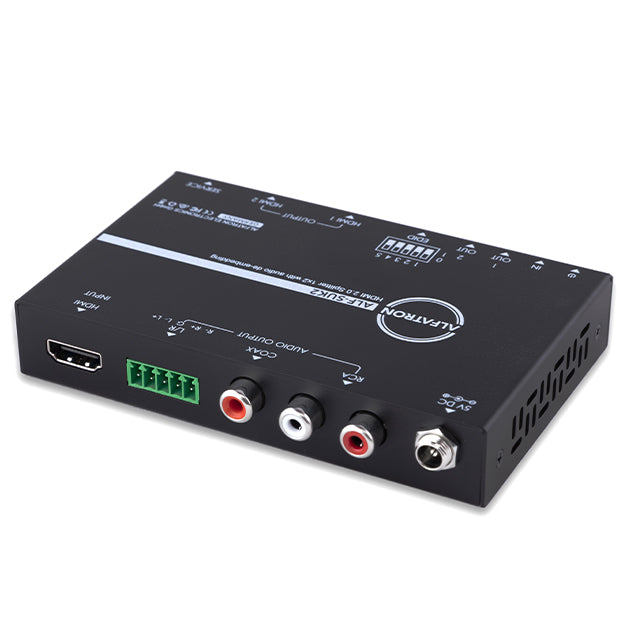

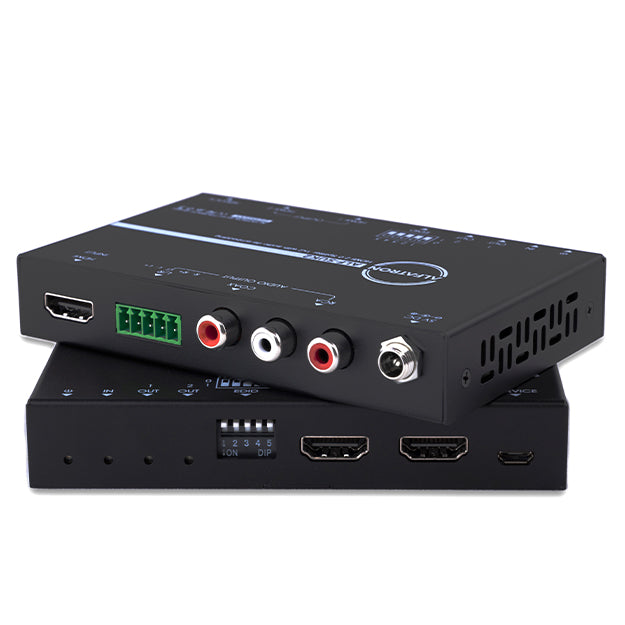

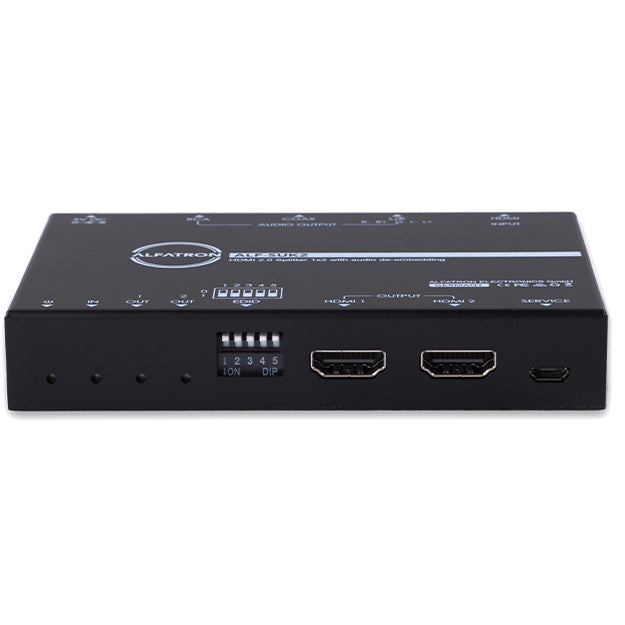

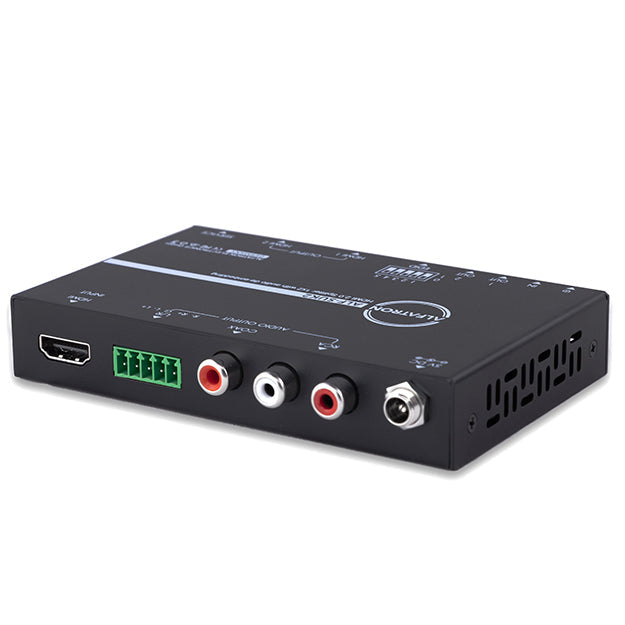

Alfatron SUK2 (Gen 2) HDMI 2.0 Splitter With One HDMI Input And Two HDMI Outputs - Black

The ALF-SUK2 is an HDMI 2.0 splitter with one HDMI input and two HDMI outputs, for high dynamic range (HDR) formats.

Full 4k 4:4:4 HDR 60Hz 1 in x 2 out HDMI 2.0 splitter/distribution amplifier.  HDCP 2.2, EDID management, 2K X 4K 60Hz resolution.  Supports downscaling to 1080p. Connectivity: 1 x HDMI in, 2 x HDMI out plus  built in audio de-embedder with unbalanced RCA outputs or balanced Phoenix connector.  HDMI cable length 4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m, 1080P ≤ 20m.

The ALF-SUK2 is an HDMI 2.0 splitter with one HDMI input and two HDMI outputs, for high dynamic range (HDR) formats.  It is HDCP 2.3 compliant, supports 4K / UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. This splitter includes de-embedded audio, scaling, EDID management, and front panel LED indicators for power and signal status.

Product Features
4K / UHD capability @ 60 Hz with 4:4:4 chroma sampling
Compatible with 4K HDR10 @ 60 Hz, HLG (Hybrid Log-Gamma).
HDCP 2.3, and is backwards compatible
Smart EDID management via 5 pin DIP switcher, with the source through a display’s EDID or internally stored EDID
De-embedded audio: 1 x balanced, 1 x Optical, 1 x RCA
Automatically downscaling from 4k to 1080p for legacy displays
Device can be updated in the field via USB port

Video

Inputs/Outputs: 1x HDMI in, 2x HDMI out (Type-A female HDMI)
Resolution Support: Up to 4K @ 60Hz (4:4:4, 8-bit)

HDMI Standard: HDMI 2.0

HDR Support: HDR10, HDR10+, HLG (formats: 4:2:0, 4:2:2, 4:4:4 at 10- & 12-bit Deep Colour)

Deep Colour: Up to 16-bit (1080p), up to 12-bit (4K)

HDCP Compliance: Versions 2.3, 2.2, 1.4

CEC: Supported

Audio

HDMI Audio: PCM 2.0, LPCM 5.1/7.1, Dolby Digital, DTS 5.1, Dolby® TrueHD, Dolby Digital® Plus, DTS-HD® Master Audio™, DTS-X, Dolby Atmos

Coaxial Audio: Same formats as HDMI (PCM 2.0, LPCM 5.1/7.1, Dolby Digital, DTS 5.1, Dolby® TrueHD, Dolby Digital® Plus, DTS-HD® Master Audio™, DTS-X, Dolby Atmos)

Analog (Balanced): PCM 2.0

Analog (RCA): PCM 2.0

Control

EDID 5-pin DIP switch

Micro-USB port

General Specifications

Bandwidth: 18Gbps

HDMI 2.0 Cable Length:

4K @ 60Hz (4:4:4): up to 5m

4K @ 60Hz (4:2:0): up to 15m

1080p: up to 20m

Operating Temperature: -10℃ to +55℃

Storage Temperature: -25℃ to +70℃

Humidity Tolerance: 10% – 90%

Power Supply: 100V–240V AC input | 5V DC 1A output

Power Consumption: Max 2W

Dimensions (W x H x D): 120mm x 21mm x 75mm
Barcode: 781159725135
